Description

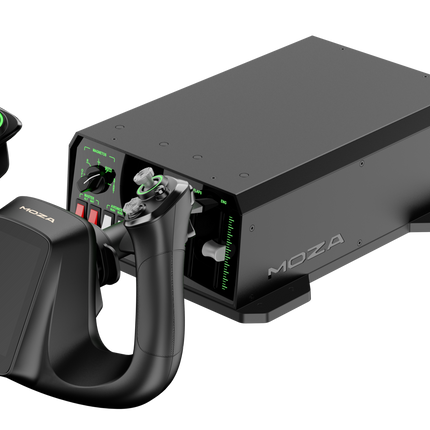

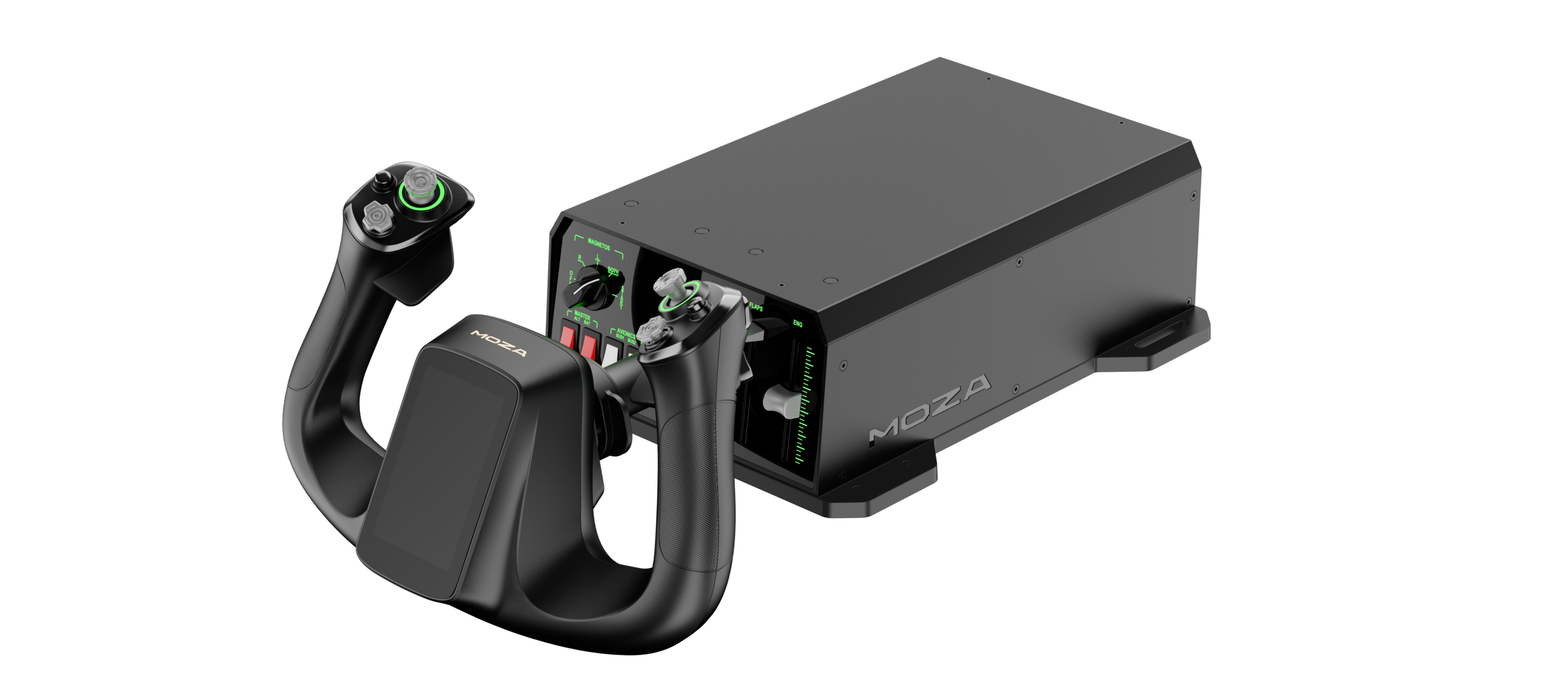

MOZA AY90 Yoke Bundle replaces vague spring tension with control forces that actually tell your hands what the aircraft is doing. The base delivers 4.2 Nm of roll torque and 90 N of push-pull force, while either the MFY or MFY Pro Yoke Handle completes the package with airliner-inspired ergonomics and programmable controls. Ground roll produces a convincing tremor, trim changes alter the resistance, and stall buffet becomes rather difficult to ignore. Despite all that machinery, the compact composite housing remains manageable on a desk or aluminium-profile cockpit.
What Sets the Moza AY90 Yoke Bundle apart?
-
Force Feedback Instead of Decorative Resistance Spring-loaded yokes tend to pull toward the centre with little regard for airspeed, trim, or aircraft condition. The AY90 uses 4.2 Nm of roll torque and 90 N of pitch force to communicate ground vibration, aerodynamic loading, autopilot movement, trim resistance, and stall buffet. This gives the pilot useful physical information throughout the flight rather than the same elastic tug from taxiway to final approach.
-
Two Yoke Options for Different Cockpit Priorities The bundle can be configured with either the MFY Yoke Handle or the more extensively equipped MFY Pro Yoke Handle. This allows pilots to choose between a straightforward control interface and a more feature-rich airliner-style option without changing the base. The aluminium-alloy quick-release also makes handle swaps tool-free, secure, and refreshingly free from the sort of mechanical wobble that turns a firm landing into unintended percussion.
-
Compact Construction with Full Control Travel Force-feedback hardware often claims a significant portion of the desk before the aircraft has even loaded. The AY90 keeps its footprint to 325 × 252 mm while still providing ±90° roll movement and 95 mm of pitch travel. Its carbon-fibre-reinforced composite housing weighs 4.5 kg, making it substantial enough to remain controlled under load without becoming an unreasonable burden for desktop clamps or profile mounting.
-
Useful Controls Beyond the Yoke Handle Rocker switches, sliders, rotary inputs, and a five-way hat switch are built into the base, reducing the number of routine functions left to the keyboard. Every input can be remapped through MOZA Cockpit, while the RGB strip can represent engine speed, throttle position, or other telemetry. Dedicated upper mounting points also provide space for gauges, displays, and custom accessories as the cockpit gradually consumes the room around it.
Pros and Cons
| Pros |
Cons |
| Motor-driven forces communicate trim and aerodynamic loading. |
Requires mains power alongside the USB connection. |
| Two handle choices suit different cockpit configurations. |
Supported exclusively on PC flight simulators. |
| Compact housing supports desktop and profile mounting. |
|
| Tool-free quick-release simplifies yoke handle changes. |
|
Specifications
| Specification |
Value |
| Product Name |
MOZA AY90 Yoke Bundle |
| Included Yoke Handle Options |
MOZA MFY Yoke Handle or MOZA MFY Pro Yoke Handle |
| Base Dimensions |
325 × 252 × 111 mm |
| Base Weight |
4.5 kg |
| Housing Material |
Carbon Fiber Reinforced Composite |
| Quick-Release Material |
Aluminum Alloy |
| Button Cap Material |
ABS |
| Roll Axis Travel |
±90° |
| Total Roll Rotation |
180° |
| Pitch Travel |
95 mm |
| Roll Torque |
4.2 Nm |
| Pitch Push-Pull Force |
90 N |
| Motor Encoder |
15-bit magnetic encoder |
| 5-Way Hat Switch |
1 |
| Rocker Switches |
4 |
| Slider Switches |
2 |
| RGB Lighting |
16.7-million-colour telemetry-capable lighting strip |
| Power Input |
12 V, 6 A |
| Configuration Software |
MOZA Cockpit |
| Mounting Options |
Desk clamps, profile rails, 80/20-style aluminium extrusion |
| Supported Platform |
PC |
| Included Accessories |
Power adapter, USB cable, user manual, sticker, two desk clamps |
Moza AY90 Yoke Bundle Compatibility
| Category |
Compatibility |
| Yoke Handle Options |
MOZA MFY Yoke Handle or MOZA MFY Pro Yoke Handle |
| Handle Connection |
MOZA aluminium-alloy quick-release system |
| Desktop Installation |
Two included desk clamps |
| Cockpit Installation |
Profile rails and 80/20-style aluminium extrusion |
| Accessory Expansion |
Top mounting points for gauges, screens, and custom peripherals |
| Configuration Software |
MOZA Cockpit |
| Simulator or Platform |
Compatibility |
| Microsoft Flight Simulator |
Compatible |
| X-Plane |
Compatible |
| DCS World |
Compatible |
| War Thunder |
Compatible |
| Windows PC |
Supported platform |
| Xbox |
Not supported |
| PlayStation |
Not supported |
The bundle combines the AY90 base with either the MOZA MFY Yoke Handle or the MOZA MFY Pro Yoke Handle. Both attach through the aluminium-alloy quick-release, allowing secure, tool-free changes without replacing the complete control system. The connection is designed specifically around compatible MOZA yoke handles rather than universal third-party yokes, so unrelated handles cannot be fitted directly without a suitable adapter.
Installation options include the two supplied desk clamps, profile-rail mounting, and standard holes for 80/20-style aluminium extrusion. The base can sit alongside separate throttles, rudder pedals, instrument panels, and other USB flight controls because these devices are normally recognised independently by the simulator. Upper mounting points also accept custom gauges and displays, although third-party accessories may require separately produced or 3D-printed mounting adapters.
The AY90 Yoke Bundle is a PC-only flight control system compatible with Microsoft Flight Simulator, X-Plane, DCS World, and War Thunder. MOZA Cockpit handles force-feedback configuration, button mapping, input adjustment, and telemetry lighting. It is not compatible with Xbox or PlayStation consoles, and force-feedback behaviour can vary between simulator titles, aircraft modules, and the effects supported by each software integration.
